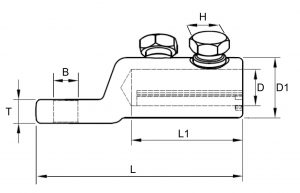

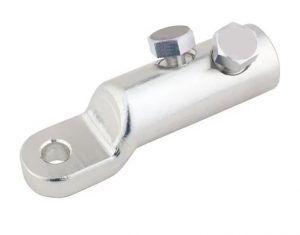

The body and shear bolts have been manufactured from aluminium which has been electro tin plated.
Low Voltage lugs cover the range from 6mm² to 240mm²
All palm holes are suitable to accommodate M12 bolts.
Medium Voltage lugs cover the range from 16mm² to 1000mm² which are available with palm holes to accommodate M12 and M16 bolts.
The lugs are suitable for indoor and outdoor applications
Shear off bolts guarantee excellent electrical connection .
Accommodates most types of conductors and shapes.
Inexpensive tooling required for installation, a standard socket or wrench set is suitable.
With no inspection hole, moisture ingression is eliminated.
The grooved inner barrel with anti oxidizing paste for aluminium cable compliments the shear bolt action ensuring good electrical and mechanical connection.
Once the bolt has been sheared off, it can no longer be removed.
Range taking allows for lowered inventory levels.
LOW Voltage - Lugs - Complies to IEC61238-1 Class A & B
Medium Voltage - Lugs - Complies to IEC61238-1 Class A & B

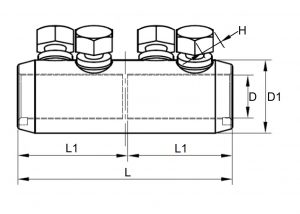

The body and shear bolts have been manufactured from aluminium which has been electro tin plated.
Low Voltage connectors cover the range from 6mm² to 240mm²
Medium Voltage connectors cover the range from 16mm² to 1000mm².
The connectors are suitable for indoor and outdoor applications
Shear off bolts guarantee excellent electrical connection .
Accommodates most types of conductors and shapes.
Inexpensive tooling required for installation, a standard socket or wrench set is suitable.
The grooved inner barrel with anti oxidizing paste for aluminium cable compliments the shear bolt action ensuring good electrical and mechanical connection.
Once the bolt has been sheared off, it can no longer be removed.
Solid centre on connectors ensures water block / ingression.
Range taking allows for lowered inventory levels.
